KFN542/HW14 ワッシャ付き 六角 フランジ セルフロック ナット |
 |
 |

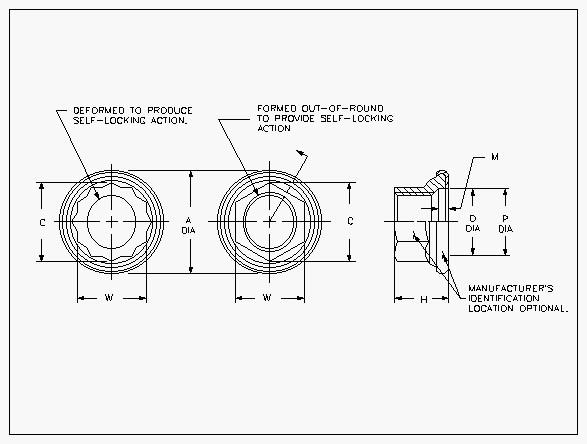

| 6 POINT CAPTIVE WASHER |
 |
|
| -9 THRU -1612 CONFIGURATION: DOUBLE HEX NUT -06 THRU -8 CONFIGURATION: HEX NUT |
|
| PART NO. | THREAD PER MIL-S-8879 |
A MAX |
C MAX |
D | H MAX |
M | P MAX |
W | AXIAL TENSILE STRENGTH LB MIN. |
APPROX. WEIGHT LBS./100 |
|||
| KFN542-06 | .1380-32 UNJC-3B | .320 | .207 | .176 .171 |
.200 | .097 .087 |
.181 | .189 .181 |
1,300 | .10 | |||
| KFN542-08 | .1640-32 UNJC-3B | .340 | .242 | .202 .197 |
.240 | .097 .087 |
.207 | .220 .212 |
2,800 | .17 | |||
| KFN542-836 | .1640-36 UNJF-3B | .340 | .242 | .202 .197 |
.220 | .097 .087 |
.207 | .220 .212 |
2,800 | .17 | |||
| KFN542-3 | .1900-32 UNJF-3B | .363 | .277 | .228 .223 |
.243 | .097 .087 |
.233 | .251 .243 |
3,470 | .24 | |||
| KFN542-4 | .2500-28 UNJF-3B | .460 | .348 | .288 .283 |
.280 | .097 .087 |
.293 | .313 .306 |
6,200 | .47 | |||
| KFN542-5 | .3125-24 UNJF-3B | .560 | .419 | .352 .347 |
.340 | .097 .087 |
.357 | .376 .367 |
9,800 | .78 | |||
| KFN542-6 | .3750-24 UNJF-3B | .660 | .491 | .417 .412 |
.355 | .097 .087 |
.422 | .439 .430 |
13,000 | .93 | |||
| KFN542-7 | .4375-20 UNJF-3B | .760 | .561 | .484 .497 |
.400 | .097 .087 |
.489 | .502 .492 |
18,000 | 1.44 | |||
| KFN542-8 | .5000-20 UNJF-3B | .860 | .631 | .551 .546 |
.430 | .097 .087 |
.556 | .564 .553 |
24,000 | 1.94 | |||
| KFN542-9 | .5625-18 UNJS-3B | 1.005 | .700 | .640 .635 |
.530 | .115 .105 |
.645 | .627 .616 |
33,000 | 3.08 | |||
| KFN542-10 | .6250-18 UNJS-3B | 1.100 | .846 | .710 .705 |
.575 | .115 .105 |
.715 | .752 .741 |
43,000 | 5.00 | |||
| KFN542-12 | .7500-16UNJS-3B | 1.310 | .987 | .845 .840 |
.670 | .125 .115 |
.850 | .877 .865 |
61,000 | 7.88 | |||
| KFN542-14 | .8750-14 UNJS-3B | 1.480 | 1.130 | .985 .980 |
.770 | .145 .135 |
.990 | 1.002 .990 |
73,900 | 11.45 | |||
| KFN5421612 | 1.000-12 UNJS-3B | 1.690 | 1.271 | 1.125 1.120 |
.870 | .165 .155 |
1.130 | 1.127 1.115 |
85,700 | 16.00 | |||
| MATERIAL: | Nut - Alloy steel per MIL-S-6049 (8740), MIL-S-5000 (4340), or MIL-S-5626
(4140). Washer - Carbon steel. |
|||||||||||||
| HEAT TREAT: | Nut - Rc 39-43 per MIL-H-6875 Washer - RC 40-45 |
|||||||||||||
| FINISH: | KFN542-(*) | - Nut and washer - Cadmium plated per QQ-P-416, Type ll, Class 2, (-836 size: plated per QQ-P-416, Type ll, Calss 2, plus olive drab chromate finish for identification purposes.) |
||||||||||||
| PERFORMANCE: | KFS1009, except axial tensile strength as tabulated. | |||||||||||||
| APPLICATION | For use on standard to .032 oversize shank bolts. | |||||||||||||
| PACKAGING: | Parts are normally supplied in bulk packaging. Add "S" after
dash number for spindle packaged nuts for use with K-fast tools (-836 through -5 sizes only). Example: KFN542-3S. |
|||||||||||||
| NOTES: | "C" and "W" demensions apply before forming self-locking feature. | |||||||||||||
| 注：指示なきすべての寸法はインチ、1インチ＝25.4mm | ||||||||||||||
 |
||||||||||||||
