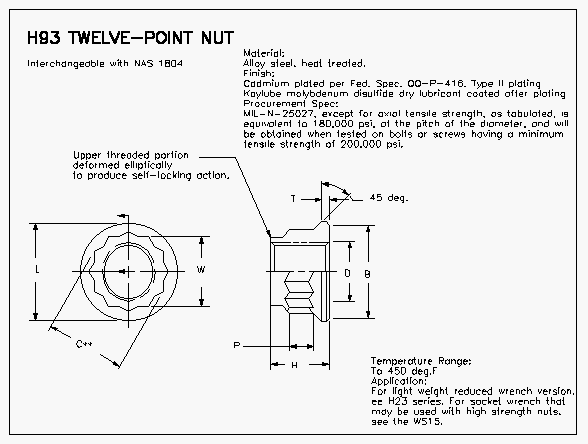

H93/NAS1804 12角 フランジ セルフロック ナット |
 |
 |
 |
| PART NUMBERS |
THREAD (MIL-S-8879) |
B (MIN) |
C** (MIN) |
D | H (MIN) |
L (MAX) |
P (MIN) |
T (REF) |
W** | BERAING SURFACE SQUARENESS* |
AXIAL TENSILE STRENGTH LBS. MIN. |
|||
| H93-4 | .2500-28 UNJF-3B | .394 | .348 | .280-.250 | .250 | .434 | .082 | .020 | .313-.305 | .003 | 7270 | |||
| H93-5 | .3125-24 UNJF-3B | .492 | .420 | .342-.312 | .285 | .532 | .120 | .035 | .378-.367 | .004 | 11500 | |||
| H93-6 | .3750-24 UNJF-3B | .591 | .490 | .405-.375 | .375 | .631 | .130 | .056 | .439-.430 | .005 | 17100 | |||
| H93-7 | .4375-20 UNJF-3B | .689 | .633 | .473-.438 | .438 | .729 | .164 | .069 | .564-.553 | 23200 | ||||
| H93-8 | .5000-20 UNJF-3B | .788 | .704 | .535-.500 | .500 | .828 | .190 | .074 | .627-.616 | 30900 | ||||
| H93-9 | .5625-18 UNJF-3B | .886 | .775 | .597-.562 | .562 | .926 | .230 | .079 | .690-.679 | .006 | 39100 | |||
| H93-10 | .6250-18 UNJF-3B | .984 | .846 | .660-.625 | .825 | 1.024 | .250 | .084 | .752-.741 | 49100 | ||||
| H93-12 | .7500-16 UNJF-3B | 1.181 | 1.059 | .785-.750 | .750 | 1.221 | .310 | .094 | .940-.928 | .007 | 71000 | |||
| H93-14 | .8750-14 UNJF-3B | 1.378 | 1.200 | .990-.875 | .875 | 1.418 | .350 | .109 | 1.064-1.052 | .008 | 97000 | |||
| H93-16 | 1.0000-14 UNJS-3B | 1.575 | 1.334 | 1.035-1.000 | 1.000 | 1.625 | .400 | .122 | 1.190-1.177 | .009 | 128000 | |||
| 注：指示なきすべての寸法はインチ、1インチ＝25.4mm | ||||||||||||
 |
